Euchner MGB

3D

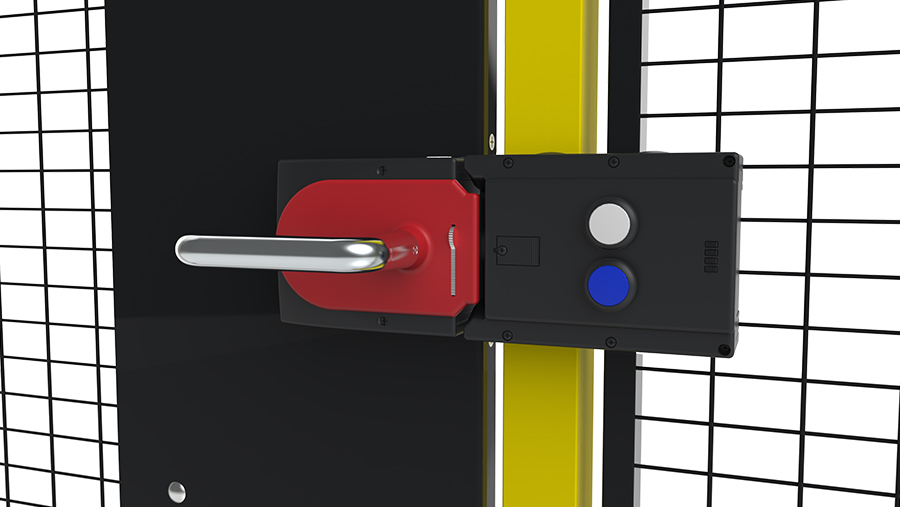

The MGB (Multifunctional Gate Box) is a unique interlock- and guard locking system for the protection of safety doors on machines and systems. Four LEDs indicate information about the lock status.  The MGB (Multifunctional Gate Box) is a unique interlock- and guard locking system for the protecti...

Obtenez votre devis maintenant

Modèles

CAO Article Description
B-135 Euchner MGB-L1H-ARA-R-121061 mechanical lock, left / right, two push buttons
1 1
B-136 Euchner, emergency opening handle MGB 100465
1 1
B-143 Cable 5m, M12, 8-pol
B-300 Telemecanique, XCS TE7311, plastic, Locking w/o 24 VDC, cont 2NC
1
B-301 Telemecanique, XCS A701, metal, No Lock, cont 2NC+1NO
1
B-302 Telemecanique, XCS E7311, metal, Locking w/o 24 VDC, cont 2NC+1NO
1 1
B-303 Telemecanique, XCS TA791, plastic, No Lock, cont 2NC+1NO
1
B-500 Guardmaster, TLS2-GD2, plastic, Locking with 24 VDC, cont 3NC+2NO
1 1
B-501 Guardmaster, Trojan 5, plastic, No lock, cont 2NC+1NO (incl. key)
1 1
B-504 Allen-Bradley cable l=5m 8-pin on M12 socket
B-505 Allen-Bradley cable l=20m 8-pin on M12 socket
1
B-507 SensaGuard II 25x88 non-contact unique coded, incl actuator, 0,2m ca
1 1
B-508 Guardmaster TLS-ZL GD2 24VDC, power to lock
1 1
B-509 Guardmaster TLS-ZR GD2 24VDC, power to release
1 1
B-610 Siemens 3SE5 112-0QV10, metal, no lock, cont 2NC+1NO
1 1
B-611 Siemens, 3SE5 232-0QV40, plastic, No lock, cont 2NC+1NO
1 1
B-612 Siemens 3SE5 312-0SB11, metal, locking with 24VDC,cont 2NC+1NO,2NC+1NO
1 1
B-613 Siemens 3SE5 312-0SD11, metal, release 24 VDC, cont 2NC+1NO,2NC+1NO
1 1
B-614 Siemens 3SE5 312-1SG11, metal, release 24 VDC, kont 2NC+1NO, 2NC+1NO
1 1
B-615 Siemens safety switch 3SE6 RFID non-contact, incl actuator, M12 connec
1
B-618 Siemens 3SE6315-0BB01 RFID non-contact, 25x91mm, multicode
1
N-1-01 Euchner 016849, (straight)
1
N-3-01 Telemecanique XCS Z01, wide (straight)
1
N-3-02 Telemecanique XCS Z02, wide (angled)
1
N-3-03 Telemecanique XCS Z11, slim (straight)
1
N-3-04 Telemecanique XCS Z15, slim (angled)
1
N-6-03 Siemens 3SX3 207, smal (straight, long)
N-6-12 Siemens 3SE5 000-0AV02, vertical mountig, angled key
1 1
N-6-13 Siemens 3SE5 000-0AV03, horizont. assemble, angled
1 1

Téléchargements

B-135

Informations produits

B-136

Informations produits

Euchner MGB

Informations produits

T10-30

Guide d’assemblage

T10-31

Guide d’assemblage

T10-33

Guide d’assemblage

T10-34

Guide d’assemblage

T10-35

Guide d’assemblage

T10-36

Guide d’assemblage

T10-37

Guide d’assemblage

X-Guard Technical

Brochure

Caractéristiques techniques

The MGB (Multifunctional Gate Box) is a unique interlock- and guard locking system for the protection of safety doors on machines and systems. Four LEDs indicate information about the lock status.

The MGB (Multifunctional Gate Box) is a unique interlock- and guard locking system for the protection of safety doors on machines and systems. Four LEDs indicate information about the lock status.

The lock has an intelligent plunge whose position is detected by an RFID transponder which has a unique code. This makes manipulation impossible while allowing that the MGB can achieve the highest safety category 4 / PLe according to EN ISO 13849-1 / SIL 3 of EN 62061.



Under the hood sits a mechanical unlocking system which makes it possible to open the lock on power failure. Euchner MGB has a mechanical door stop in the metal, and markings for easy adjustment of the handle module. The handle is made from strong and easy-grip metal, and can be rotated in 90 degree increments to suit the installation.

As an accessory there are emergency handles for mounting on the inside. It personally helps to evacuate the dangerous area in an emergency. The emergency release handle on the inside helps staff accidentally left in the danger zone. When activated, the door opens immediately and the machine is turned off.

During service execution inside the hazardous area a bolt tongue can be folded out, which prevents the door to be locked. On the jumper it’s also room for three padlocks.
