Stockage

Box grillagé FK

3D

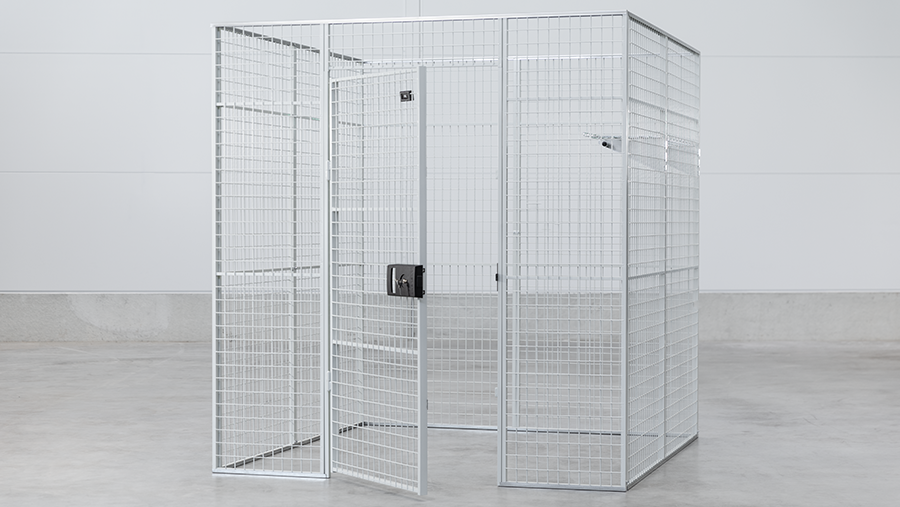

It is in the details that quality comes to the fore. Our FK storeroom system has a heavy duty tubular design for both its doors and walls, which makes the system secure and stable. Try combining FK with partitions from our F-system, the results are often really impressive.

Obtenez votre devis maintenant

Modèles

  • Lock solutions

    6 Articles
    CAO Article Description
    34-00055 Reinforced padlock fitting with cover (standard)
    1
    34-90000 Cylinder lock (optional)
    1
    XIT-L01-104 X-It cylinder lock, hinge door, left, System FK
    2 2
    XIT-R01-104 X-It cylinder lock, hinge door, right, System FK
    2 2
    XIT-L09-104 X-It Electric with escape release function, hinge door, left, System FK
    2 1
    XIT-R09-104 X-It Electric with escape release function, hinge door, right, System FK
    2 1

Téléchargements

Storeroom type FK

Informations produits

Storeroom roof

Guide d’assemblage

Storeroom mesh

Guide d’assemblage

Axelent | Storeroom

Brochure

Storeroom Technical information

Informations produits

Informations produits

It is in the details that quality comes to the fore. Our FK storeroom system has a heavy duty tubular design for both its doors and walls, which makes the system secure and stable. Try combining FK with partitions from our F-system, the results are often really impressive.

  • Extra robust tubular construction in both doors and walls.
  • Can be combined with the F and FP systems.
  • Can be cut to suit existing construction.
  • Can be supplied with a roof for ceiling heights exceeding 3.5 metres.
  • The walls are painted in RAL 9018.
Product Size (mm) Description
Vertical tubes 30x20 Tubular steel frame, wall
Horizontal tubes 25x15 Tubular steel frame, wall
Vertical tubes 30x20 Tubular steel frame, door
Horizontal tubes 35x15 Tubular steel frame, door
Vertical wires Ø 4,0 Steel mesh
Horizontal wires Ø 4,0 Steel mesh
Dimensions 50x65
40-4225750(1) 2000x710 Door opening dimensions
40-4225900(1) 2000x860 Door opening dimensions
